Customization: | Available |
---|---|
Feature: | Waterproof, Fire Proof, UV-Resistance… |
Style: | PVC Laminated |
Product Description

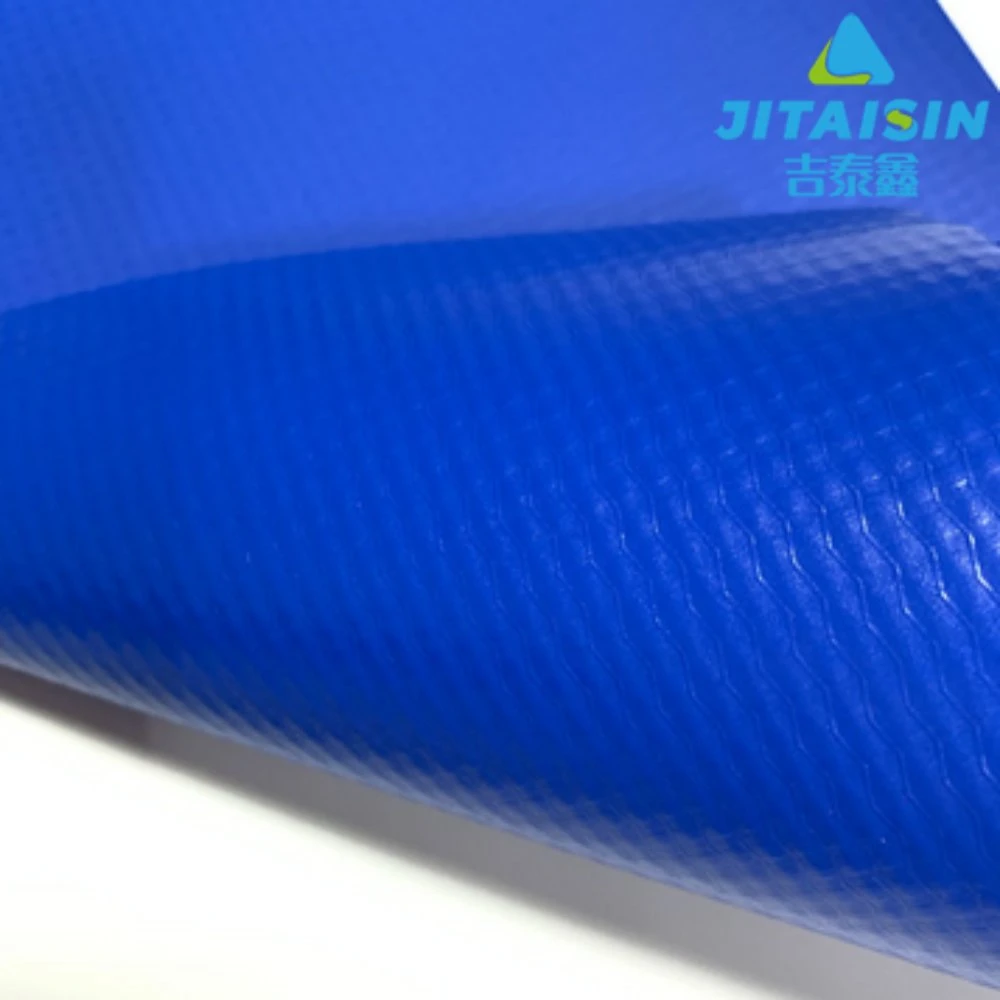

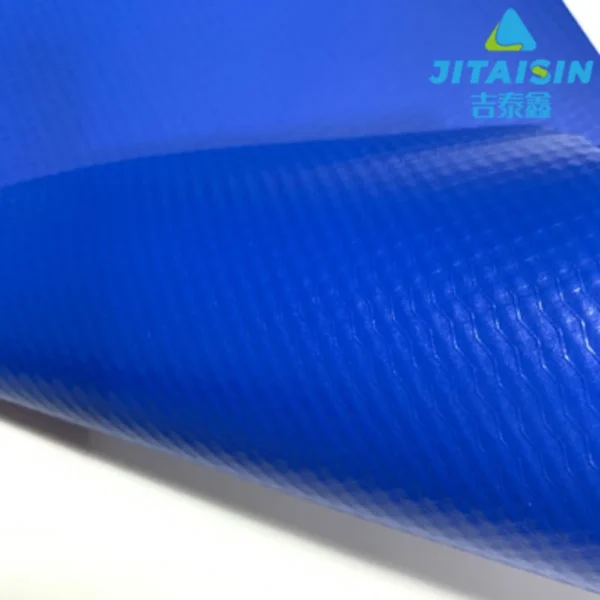

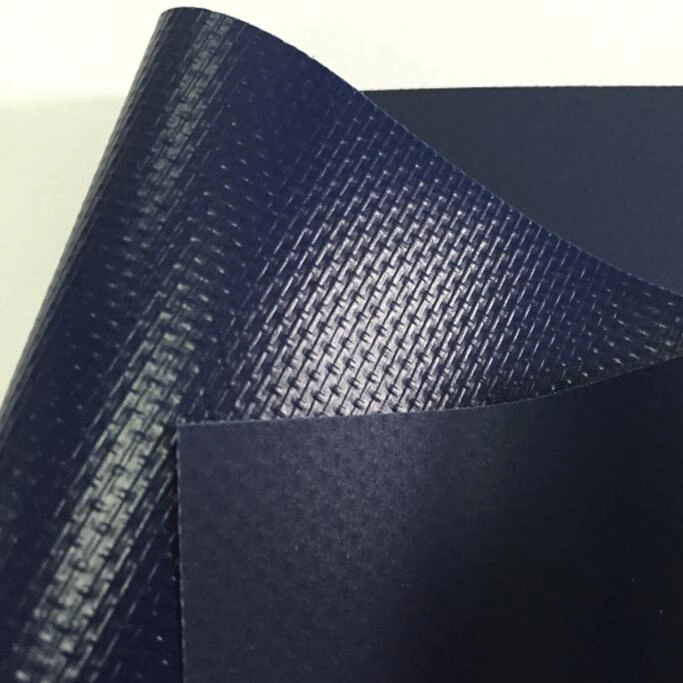

Heavy Duty Waterproof UV Resistant Vinyl Polyester Tents Truck Cover Bag Fabric Laminated Coated Roll Tarpaulin PVC Tarpaulin 500gsm
High strength, excellent quality stability and self-cleaning of surface, anti-aging and various weather resistance
performance Material: PVC and polyester yarn base cloth
Pattern:Laminated and coat Regular Weight:350gsm~1500gsm
Different thickness Regular Polyester:200D*300D/ 500D 9*9/500D 18*17/, etc Width:1.0M-1.83M
Temperature Resistance: -30ºC-70ºC
Flame Retardant: B1, B2, M1, M2, NFPA-701, CAPI-84 Optional Finishing:Glossy,matt, semi-matt
Eco Friendly: 6P free or REACH & RoHs compliance
Customized product solutions will be offered according to the actual needs of customers.
Product Process | Laminated | Laminated | Coated | Coated | Coated | Coated | Coated | Coated | |
Base Fabric-Polyester | 500D 9x9 | 1000D 14x14 | 840D 18x18 | 500D 18x17 | 1000D 20x20 | 1000D 23x23 | 1000D 30x30 | 1300D 30x32 | |
Surface | Glossy/Matte/Semi-gloss /Embossing | ||||||||
Total Weight | 440gsm | 680gsm | 550gsm | 610gsm | 650gsm | 750gsm | 900gsm | 1250gsm | |
Tensile Strength ( N/5cm) | Warp | ≥1200 | ≥1800 | ≥2400 | ≥1500 | ≥2800 | ≥3000 | ≥4500 | ≥5500 |
Weft | ≥1000 | ≥1500 | ≥2000 | ≥1200 | ≥2500 | ≥2700 | ≥4000 | ≥5000 | |
Tearing Strength (N/5cm) | Warp | ≥140 | ≥250 | ≥300 | ≥200 | ≥280 | ≥350 | ≥550 | ≥750 |
Weft | ≥120 | ≥200 | ≥260 | ≥180 | ≥250 | ≥300 | ≥450 | ≥600 | |
Adhesion Strength ( N/5cm) | >60 | >80 | >90 | >80 | >100 | >100 | >110 | >120 | |
Temperature Resistance | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC |
