Product Details
Product Description
Origin
China
Pattern
Plain
Fr Resistance
Optional
Applications
Packaging Textiles
Color
Customized
HS Code
392190
Material
100% Polyester
Specification
50 meters per roll
Gram Weight
610GSM
Trademark
Jithaixin/customized
Type
Tarpaulin
Model NO.
JTXT03
Production Capacity
1000000 Yards Per Month
Transport Package
Kraft Paper+PE Foam+Hard Tube
Eco Friendly
6p, Reach, RoHS
Structure
Yarn Form
Application

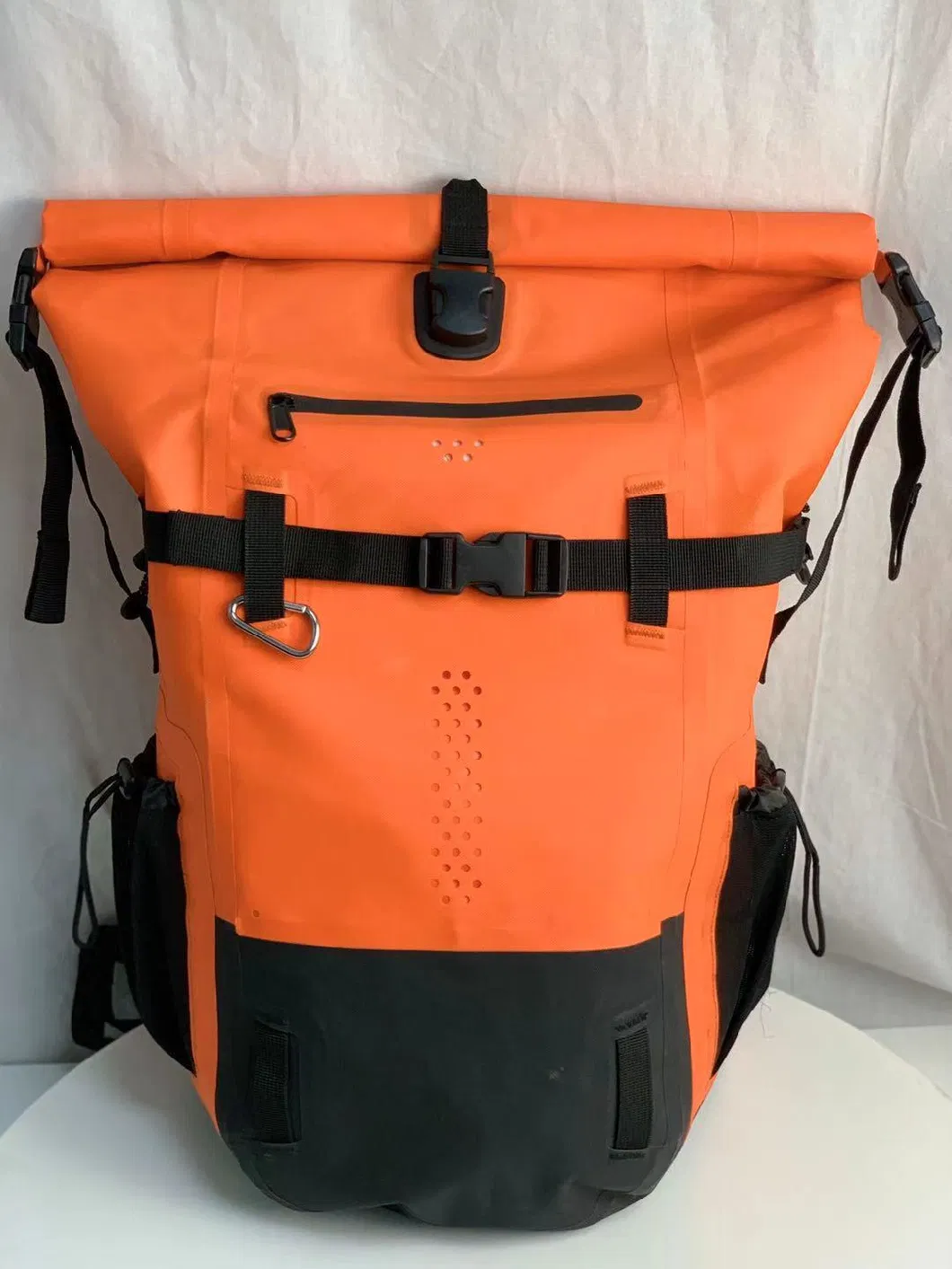

Lining, Bag, Tent, Pool, Tarpaulin, Cover...
Width
58/60"
Package Size
1.51cm * 20.00cm * 20.00cm
Package Gross Weight
1900.000kg
High strength, excellent quality stability and self-cleaning of surface, anti-aging and various weather resistance

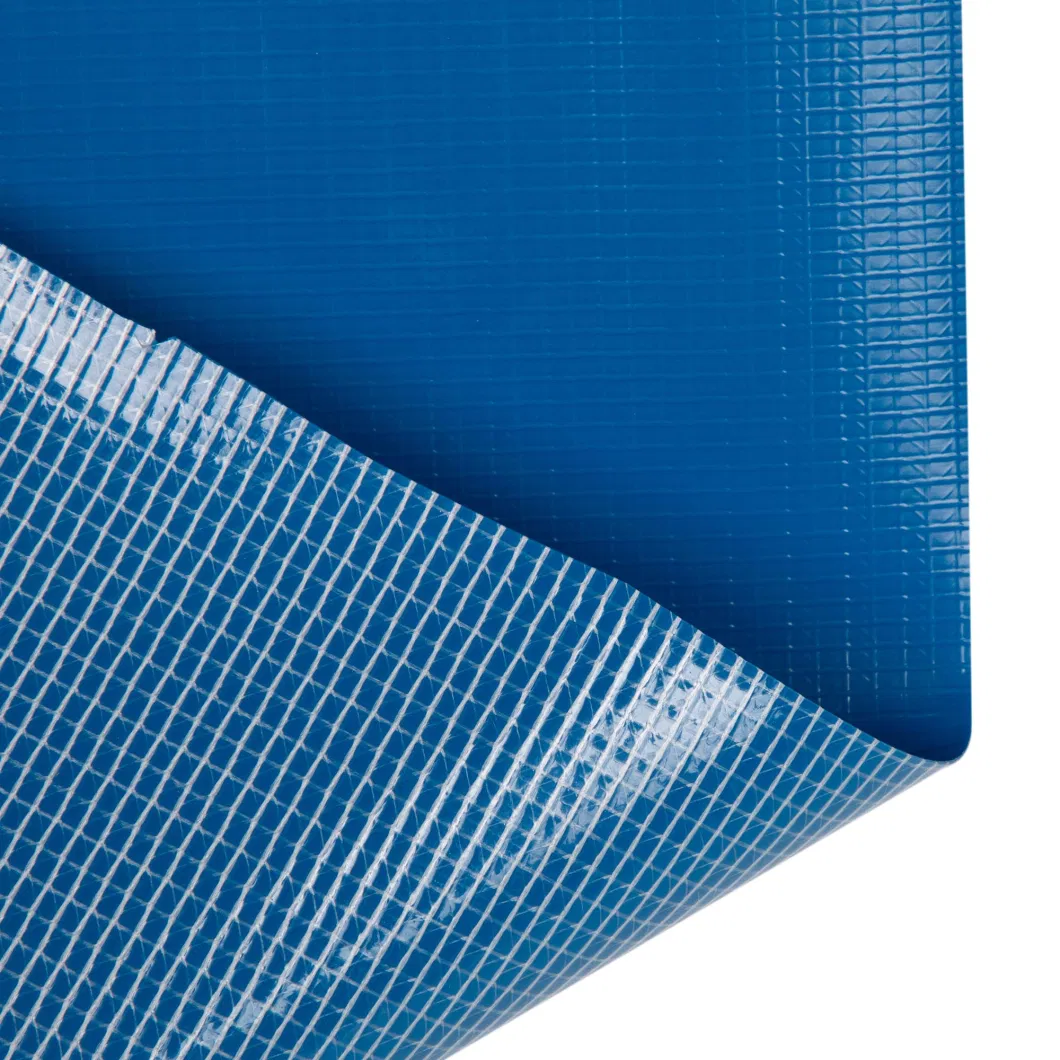

performance Material: PVC and polyester yarn base cloth

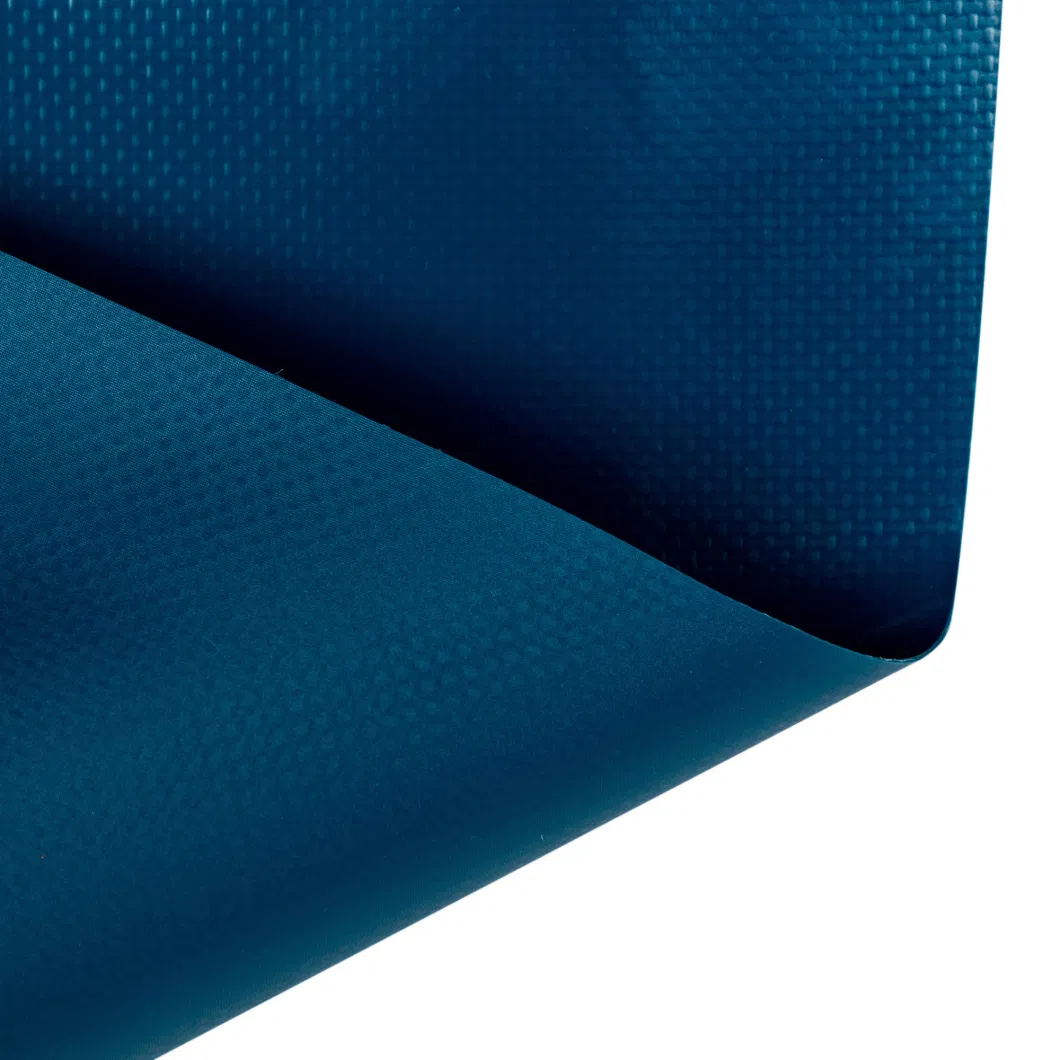

Pattern:Coated Regular Weight:400gsm~1500gsm
Different thickness Regular Polyester: 500D 9*9/500D 18*17/, etc Width:1.0M-1.83M
Temperature Resistance: -30ºC-70ºC
Flame Retardant: B1, B2, M1, M2, NFPA-701, CAPI-84 Optional Finishing:Glossy,matt, semi-matt
Eco Friendly: 6P free or REACH & RoHs compliance
Customized product solutions will be offered according to the actual needs of customers.

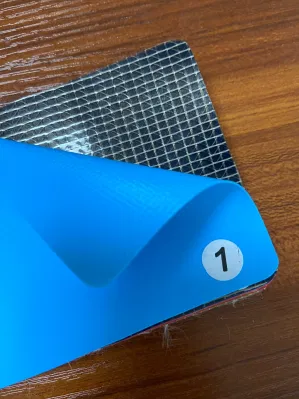

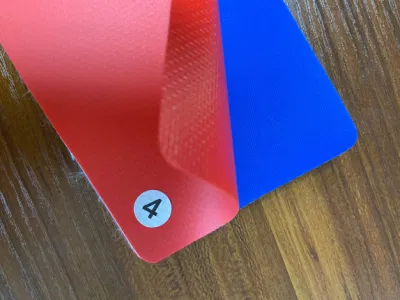

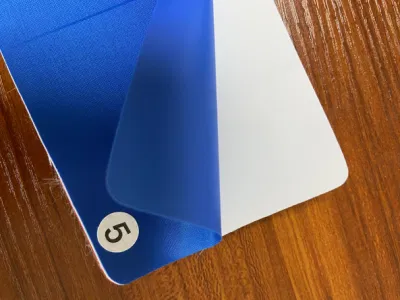

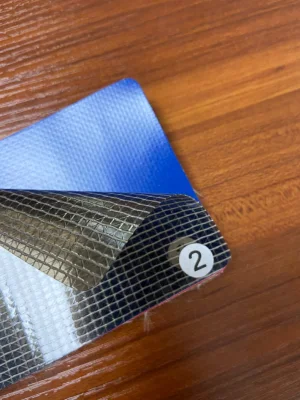

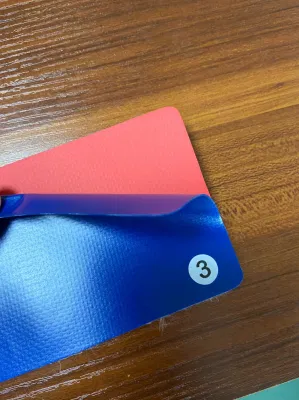

| Product Process | Laminated | Laminated | Coated | Coated | Coated | Coated | Coated | Coated | |
| Base Fabric-Polyester | 500D 9x9 | 1000D 14x14 | 840D 18x18 | 500D 18x17 | 1000D 20x20 | 1000D 23x23 | 1000D 30x30 | 1300D 30x32 | |
| Surface | Glossy/Matte/Semi-gloss /Embossing | ||||||||
| Total Weight | 440gsm | 680gsm | 550gsm | 610gsm | 650gsm | 750gsm | 900gsm | 1250gsm | |
| Tensile Strength ( N/5cm) | Warp | ≥1200 | ≥1800 | ≥2400 | ≥1500 | ≥2800 | ≥3000 | ≥4500 | ≥5500 |
| Weft | ≥1000 | ≥1500 | ≥2000 | ≥1200 | ≥2500 | ≥2700 | ≥4000 | ≥5000 | |
| Tearing Strength (N/5cm) | Warp | ≥140 | ≥250 | ≥300 | ≥200 | ≥280 | ≥350 | ≥550 | ≥750 |
| Weft | ≥120 | ≥200 | ≥260 | ≥180 | ≥250 | ≥300 | ≥450 | ≥600 | |
| Adhesion Strength ( N/5cm) | >60 | >80 | >90 | >80 | >100 | >100 | >110 | >120 | |
| Temperature Resistance | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | |
