Product Details
Product Description
Origin
China
Pattern
Plain
HS Code
5901101010
Specification
50 meters per roll
Gram Weight
20-260GSM
Trademark
Jithaixin/customized
Feature
Waterproof/ Windproof /Eco-Friendly/ Flame Retarta
Type
Tarpaulin
Model NO.
UT210
Production Capacity
100000 Meters Per Month
Transport Package
Standard Export Packing
Style
TPU Laminated
Eco Friendly
Reach, RoHS, Recycle
Base Cloth
Nylon
Structure
Fabric Form
Application
Life Jacket, Immersion Suit, Anti-Bedsore Mattres
Width
58/60"
Package Size
150.00cm * 20.00cm * 20.00cm
Package Gross Weight
300.000kg
| Product Process | Laminated | Laminated | Coated | Coated | Coated | Coated | Coated | Coated | |
| Base Fabric-Polyester | 500D 9x9 | 1000D 14x14 | 840D 18x18 | 500D 18x17 | 1000D 20x20 | 1000D 23x23 | 1000D 30x30 | 1300D 30x32 | |
| Surface | Glossy/Matte/Semi-gloss /Embossing | ||||||||
| Total Weight | 440gsm | 680gsm | 550gsm | 610gsm | 650gsm | 750gsm | 900gsm | 1250gsm | |
| Tensile Strength ( N/5cm) | Warp | ≥1200 | ≥1800 | ≥2400 | ≥1500 | ≥2800 | ≥3000 | ≥4500 | ≥5500 |
| Weft | ≥1000 | ≥1500 | ≥2000 | ≥1200 | ≥2500 | ≥2700 | ≥4000 | ≥5000 | |
| Tearing Strength (N/5cm) | Warp | ≥140 | ≥250 | ≥300 | ≥200 | ≥280 | ≥350 | ≥550 | ≥750 |
| Weft | ≥120 | ≥200 | ≥260 | ≥180 | ≥250 | ≥300 | ≥450 | ≥600 | |
| Adhesion Strength ( N/5cm) | >60 | >80 | >90 | >80 | >100 | >100 | >110 | >120 | |
| Temperature Resistance | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | -30 ºC -- 70 ºC | |

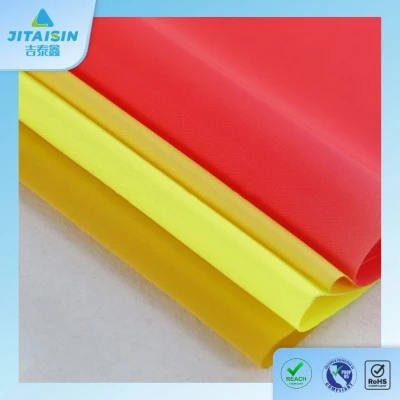

There are 3 layers in this TPU waterproof fabric.
The first layer is water repellent.
The middle one is basic fabric. It's 210D nylon oxford fabric with good tearing strength and tensile strength.
The bottom layer is TPU Film. It makes the fabric to be completely waterproof and airtight. The soft and elastic TPU layer are easy to weld.
This TPU inflatable life jacket fabric could be widely used in life jacket, immersion suit, anti-bedsore mattress, medical massage bed, Oxygen bag, waterproof bags, outdoor backpack, map case,Ipad case,Phone case, basin, water bucket, water bladder, dry bags, storage bag, inflating tent, airbag, inflatable helium RC airship, hot-air balloon… etc.
The first application of TPU is as an environmental friendly replacement of PVC, so this TPU waterproof fabric could be used in anywhere is using PVC fabric.
FAQQ.If our quantity less than your MOQ,How can i make an order?
A.If your quantity is small,please contct our sales and send your reuqirements in details,we will help you check our stock accordingly and send you feedback.
Q.How can i get a sample?
A.Samples size less than 1mts is for free,please ask it from our sales if you need some samples for testing
Q.Can you do fast deliverying?
A.20-25 workdays,if your order is urgent,we can do fast deliverying wihin7-10 days
Q.What can i do if i get the goods with bad quality?
A.1.Take photos of the goods with problem
2.Keep the goods for us
3.Send all your feedback to our sales,our client service team will help you solve the problem together.If the problem cuased by us,we will send you replacement in next order.
